Plot a Directed Graph Emphasising Flow — plotDirectedFlow • ramen

Arranges nodes of a directed graph into three distinct columns representing sources (nodes with only outgoing edges), sinks (nodes with only incoming edges), and intermediate nodes (with both incoming and outgoing edges). The layout within the intermediate column is determined using the Kamada-Kawai algorithm. This visualisation helps understand the overall flow structure within the graph and is rendered with ggraph, so the returned object composes with the usual ggplot2 operators.

Usage

plotDirectedFlow(
  g,
  sourceX = 0,
  mixedX = 1,
  sinkX = 2,
  verticalSpacing = 1,
  nodeSize = 6,
  nodeLabelSize = 3,
  edgeArrowSize = 2,
  edgeWidthRange = c(0.3, 1.2),
  colourEdgesByWeight = FALSE,
  edgeColourAttr = NULL,
  edgeColourValues = NULL,
  edgeColourLabels = NULL,
  edgeColourLegendTitle = "Type",
  edgeColourLow = ramenPalette$edgeWeight[["low"]],
  edgeColourHigh = ramenPalette$edgeWeight[["high"]],
  nodeColourValues = ramenPalette$nodeRole,
  nodeColourLabels = c(source = "Source", intermediate = "Intermediate", sink = "Sink"),
  nodeColourLegendTitle = "Node role",
  title = NULL,
  subtitle = NULL,
  main = NULL,
  ...
)

Arguments

g: An igraph object. Must be a directed graph.
sourceX: Numeric scalar. The x-coordinate for source nodes. Defaults to 0.
mixedX: Numeric scalar. The central x-coordinate for intermediate nodes. The actual layout spans mixedX +/- 0.8. Defaults to 1.
sinkX: Numeric scalar. The x-coordinate for sink nodes. Defaults to 2.
verticalSpacing: Numeric scalar. The maximum y-coordinate, controlling the vertical spread of the layout. Defaults to 1.
nodeSize: Numeric scalar. The size of node points in millimetres (ggraph unit). Defaults to 6.
nodeLabelSize: Numeric scalar. The size of node labels in millimetres. Defaults to 3.
edgeArrowSize: Numeric scalar. The arrow length on edges, in millimetres. Defaults to 2.
edgeWidthRange: Numeric vector of length 2. The minimum and maximum width for edges when scaled by weight. If the graph is unweighted or all weights are identical, the mean of this range is used. Defaults to c(0.3, 1.2).
colourEdgesByWeight: Logical scalar. If TRUE and the graph has a weight edge attribute, edges are coloured on a continuous gradient from edgeColourLow to edgeColourHigh.
edgeColourAttr: Optional character scalar naming a categorical edge attribute to colour edges by (e.g. "source"). When set, takes precedence over colourEdgesByWeight.
edgeColourValues: Optional named character vector mapping levels of edgeColourAttr to colours. Used only when edgeColourAttr is non-NULL.
edgeColourLabels: Optional named character vector mapping levels of edgeColourAttr to legend labels. Used only when edgeColourAttr is non-NULL.
edgeColourLegendTitle: Character scalar. Legend title for the categorical edge colour scale. Defaults to "Type".
edgeColourLow: Character string. The colour for the lowest edge weight when colourEdgesByWeight is TRUE. Defaults to ramenPalette$edgeWeight[["low"]] (ColorBrewer Blues, light end).
edgeColourHigh: Character string. The colour for the highest edge weight when colourEdgesByWeight is TRUE. Defaults to ramenPalette$edgeWeight[["high"]] (ColorBrewer Blues, dark end).
nodeColourValues: Named character vector of length 3 mapping the node roles "source", "intermediate", and "sink" to colours. Defaults to ramenPalette$nodeRole.
nodeColourLabels: Optional named character vector mapping node roles to legend labels. Defaults to c(source = "Source", intermediate = "Intermediate", sink = "Sink").
nodeColourLegendTitle: Character scalar. Legend title for the node-role colour scale. Defaults to "Node role".
title: Character string. Optional plot title. Falls back to the deprecated main alias when title is NULL.
subtitle: Character string. Optional plot subtitle.
main: Deprecated alias for title; will be removed in a future release.
...: Additional arguments. Currently unused; retained for forward compatibility.

Value

A ggplot object.

Details

Edges may be coloured in three ways: by a continuous weight attribute (colourEdgesByWeight = TRUE); by a categorical edge attribute (edgeColourAttr = "<name>"), in which case edgeColourValues and edgeColourLabels customise the palette and legend; or with a single fixed colour (default).

The Kamada-Kawai layout used for the intermediate column is always run unweighted. Within-column position has no semantic meaning (edge weights are encoded via colour and width on the edges), and running Kamada-Kawai with heterogeneous weights would collapse strongly-connected intermediates into the centre on weighted assays such as Consumption or Production. The source / sink / intermediate column assignment is unaffected.

The size-bearing arguments (nodeSize, nodeLabelSize, edgeArrowSize) use ggraph millimetre units rather than the igraph cex factors of the previous implementation.

Examples

cm <- synCM("test", n_species = 3, max_met = 5)
g <- igraph::graph_from_adjacency_matrix(
    SummarizedExperiment::assays(cm)[["Binary"]],
    mode = "directed",
    weighted = TRUE
)

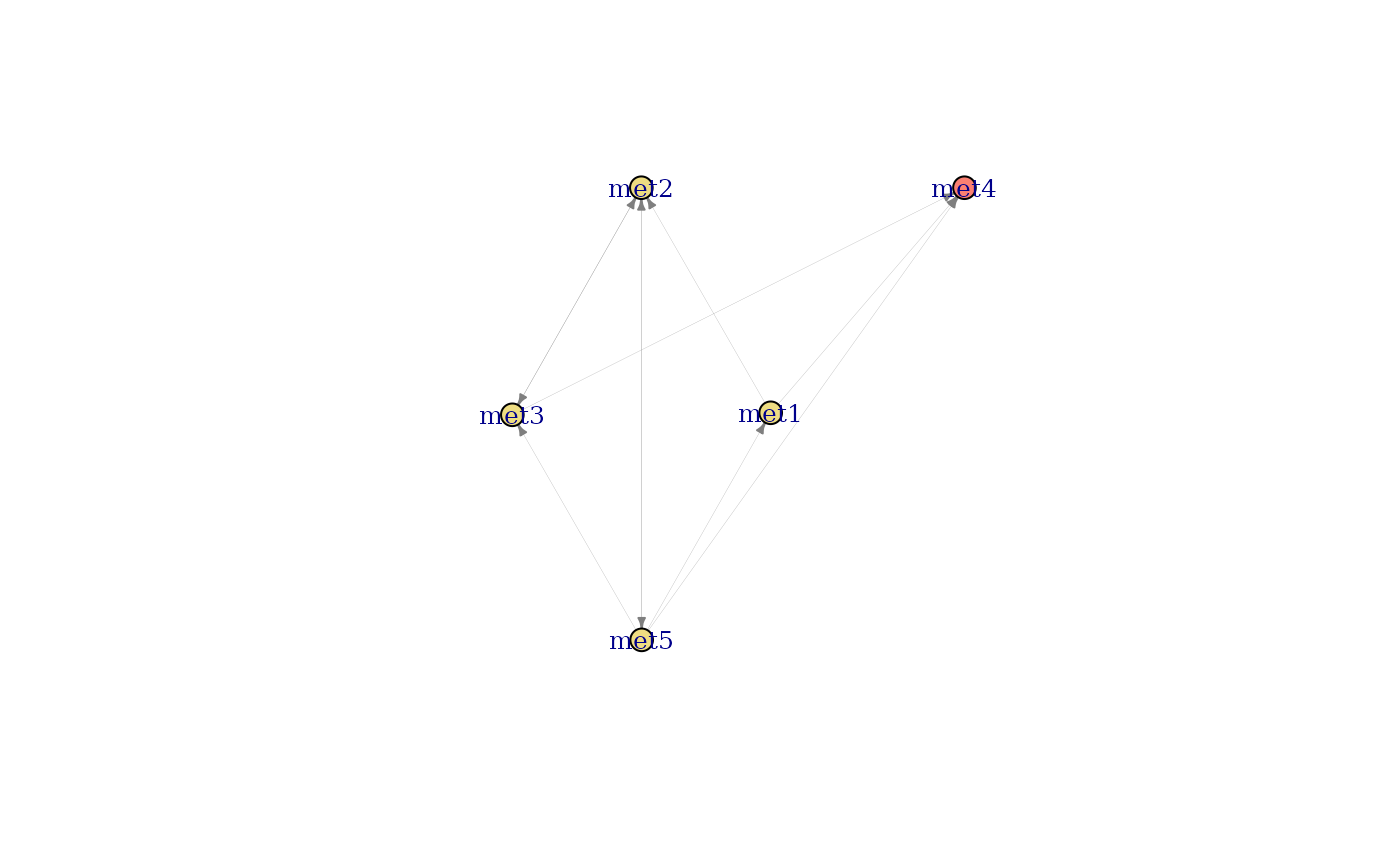

plotDirectedFlow(g)
